Name of components and information displayed on the screen (PowerShot SX730 HS)
Solution
- PowerShot SX730 HS

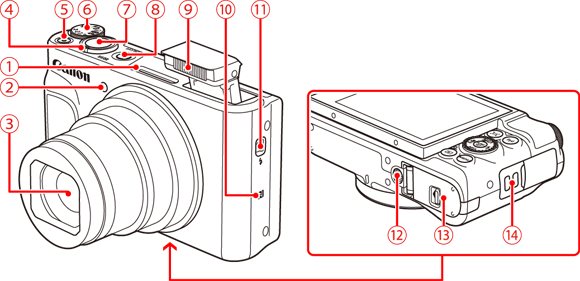

 | Microphone |  | Power button |
 | Lamp |  | Flash |
 | Lens |  |  (N-Mark)* |
 | Zoom lever Shooting: [  (telephoto)] /  (wide angle)]Playback: [  (magnify)] /  (index)] |  | [  (Flash pop up)] switch |
 | Movie button |  | Tripod socket |
 | Mode dial |  | Memory card/battery cover |
 | Shutter button |  | Strap mount |

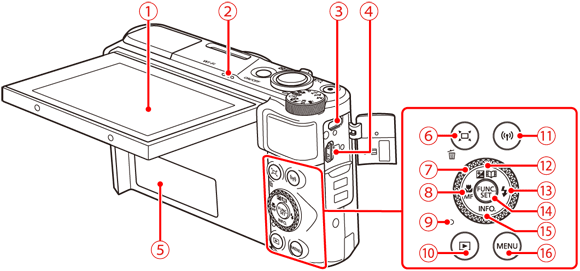

| Screen (monitor) | | Indicator |
| Speaker | | [  (Playback)] button |
| DIGITAL terminal | | [  (Wi-Fi)] button |
| HDMI™ terminal | | [  (Exposure compensation)] / [  (Story Highlights)] / Up button |
| Serial number (Body number) | | [  (Flash)] / Right button |
| [  (Framing Assist – Seek)] / [  (Single-image erase)] button | | FUNC. (Function) / SET button |
| Control dial |  | [INFO. (Information)] / Down button |
| [  (Macro)] / [  (Manual focus)] / Left button |  | [MENU] button |

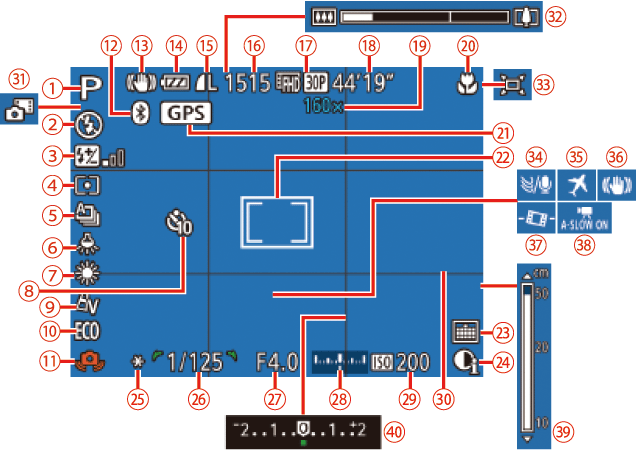

| Shooting mode, Scene icon |  | Connected via Bluetooth to a smartphone and acquiring GPS information |
| Flash mode |  | AF frame, Spot AE point frame |
| Flash exposure compensation / Flash output level |  | Date stamp |
| Metering method |  | i-Contrast |
| Drive mode |  | AE lock, FE lock |
| Mercury lamp correction |  | Shutter speed |
| White balance |  | Aperture value |
| Self-timer |  | Exposure level |
| My Colors |  | ISO speed |
| Eco mode |  | Grid lines |
| Camera shake warning |  | Hybrid Auto mode |
| Bluetooth connection status |  | Zoom bar |
| IS mode icon |  | Auto |
| Battery level |  | Wind filter |
| Still image compression, Recording pixel setting |  | Time zone |
| Recordable shots* |  | Image stabilization |
 | Movie quality |  |  Auto level |
 | Remaining time |  | Auto slow shutter |
 | Zoom magnification, Digital tele-converter |  | MF indicator |
 | Focus range, AF lock |  | Exposure compensation level |
] mode, indicates the number of shots available.
NOTE
- Some information may not be displayed when viewing images on a TV.

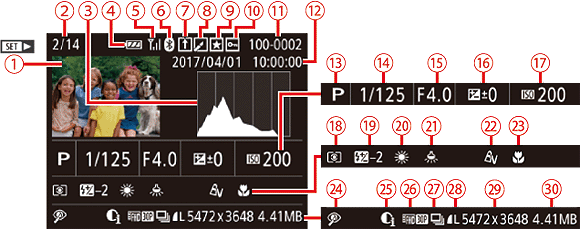

| Movie playback, Digest movie playback | | Exposure compensation level |
| Current image no. / Total no. of images | | ISO speed |
| Histogram | | Metering method |
| Battery level | | Flash, Flash exposure compensation |
| Wi-Fi signal strength | | White balance |
| Bluetooth connection status | | Mercury lamp correction |
| Image Sync | | My Colors, Creative Shot effect |
| Image editing, Movie compression | | Focus range |
| Favorites | | Red-eye correction, Short clip playback effect |
| Protection | | i-Contrast |
| Folder number - File number | | Image quality / Frame rate (movies), Albums |
| Shooting date / time | | Group playback |
| Shooting mode | | Compression (image quality) / Recording pixel setting, MP4 (movies) |
| Shutter speed | | Still images : Recording pixel setting Movies : Playback time |
| Aperture value | | File size |
