Name of components and information displayed on the screen (PowerShot SX620 HS)
Solution
PowerShot SX620 HS

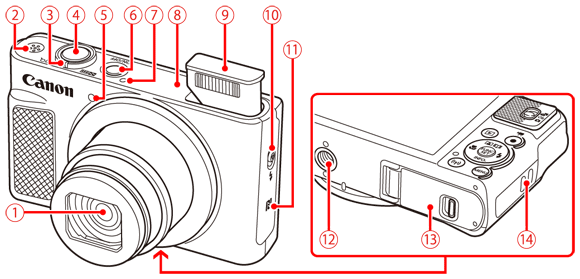

 | Lens |  | Wi-Fi antenna area |
 | Speaker |  | Flash |
 | Zoom lever Shooting: [  (telephoto) ] / [  (wide angle) ]Playback: [  (magnify) ] / [  (index) ] |  | [  (Flash pop up) ] switch |
 | Shutter button |  |  (N-Mark) **Used with NFC feature. |
 | Lamp |  | Tripod socket |
 | Power button |  | Memory card/battery cover |
 | Microphone |  | Strap mount |

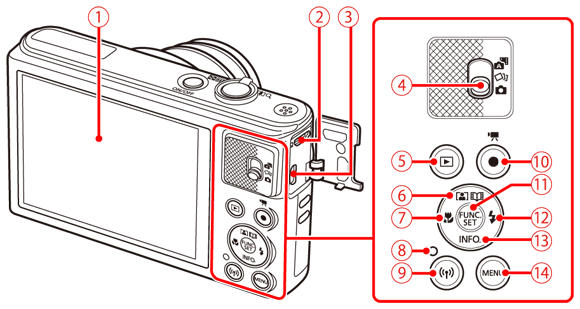

| Screen (Monitor) | | Indicator |
| DIGITAL terminal | | [  (Wi-Fi) ] button |
| HDMI™ terminal | | Movie button |
| Mode switch | | FUNC. (Function) / SET button |
| [  (Playback) ] button | | [ (Flash) ] / Right button |
| [  (Auto Zoom) ] / [  (Story Highlights) ] / Up button | | [  (Information) ] / Down button |
| [  (Macro) ] / Left button | | [  ] button |

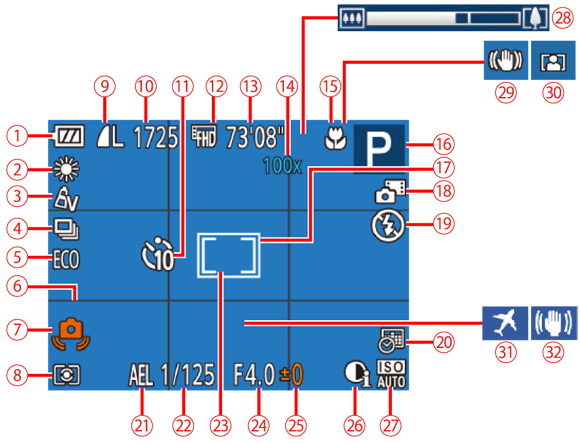

| Battery level |  | AF frame |
| White balance |  | Hybrid Auto mode |
| My Colors |  | Flash mode |
| Drive mode |  | Date stamp |
| Eco mode |  | AE lock |
| Grid lines |  | Shutter speed |
| Camera shake warning |  | Spot AE point frame |
| Metering method |  | Aperture value |
| Still image compression, Recording pixel setting |  | Exposure compensation level |
| Recordable shots * * In [  ] mode, indicates the number of shots available. |  | i-Contrast |
| Self-timer |  | ISO speed |
| Movie quality |  | Zoom bar |
| Remaining time |  | IS mode icon |
| Zoom magnification, Digital tele-converter |  | Auto Zoom |
 | Focus range |  | Time zone |
 | Shooting mode, Scene icon |  | Image stabilization |
NOTE
- Some information may not be displayed when viewing images on a TV.

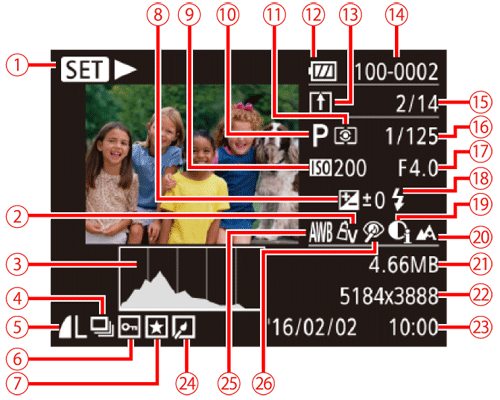

| Movie playback, Linked digest movie playback, Group playback | | Folder number - File number |
| My Colors, Creative Shot effect | | Current image no. / Total no. of images |
| Histogram | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Group playback, Digest movies | | Aperture value |
| Compression (image quality) / Recording pixel setting, MP4 (movies) | | Flash |
| Protection | | i-Contrast |
| Favorites | | Focus range |
| Exposure compensation level | | File size |
| ISO speed, Playback speed | | Still images: Recording pixel setting Movies: Playback time |
| Shooting mode | | Shooting date/time |
| Metering method | | Image editing |
| Battery level | | White balance |
| Image Sync | | Red-eye correction |
