Changing the AF Frame Position and Size (PowerShot G7 X)

When you want to change the position or size of the AF frame, set the AF frame mode to [1-point].

For more information on shooting modes in which the AF frame mode cannot be set to [1-point], please refer to the table at the end of the page.

1. Press the <Power> button to turn the camera on.

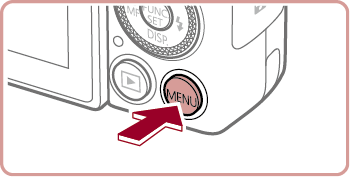

2. Press the <MENU> button.

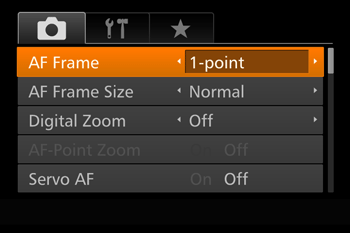

3. On the [Shooting] (

) tab, press the <

> buttons to choose [AF Frame], and then press the <

> buttons to choose [1-point].

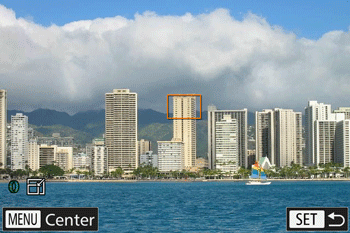

4. Touch the screen. An AF frame is displayed in orange where you touched (Touch AF).

REFERENCE

You can turn the <> dial to move the AF frame and press the <><><><> buttons to fine-tune the position.
To return the AF frame to the original position in the center, press the <MENU> button.

5. To reduce the AF frame size, turn the <

> ring. Turn it again to restore it to the original size.

6. Press the <

> button to finish the setup process.

REFERENCE

A yellow AF frame is displayed with if the camera cannot focus when you press the shutter button halfway.
AF frames are displayed at normal size when you use the digital zoom or digital tele-converter, and in manual focus mode

NOTE

To compose shots so that subjects are positioned at the edge or in a corner, first aim the camera to capture the subject in an AF frame, and then hold the shutter button halfway down. As you continue to hold the shutter button halfway, recompose the shot as desired, and then press the shutter button all the way down (Focus Lock).
The AF frame position is enlarged when you press the shutter button halfway and [AF-Point Zoom] is set to [On].

The AF frame mode cannot be set to [1-point] in the shooting modes shown in the table below.
