Name of components and information displayed on the screen (PowerShot G1 X Mark II)
Solution
PowerShot G1 X Mark II

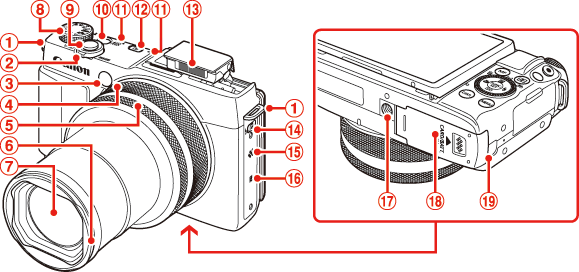

 | Strap mount |  | Microphone |
 | Zoom lever Shooting: <  (telephoto)> /<  (wide angle)>Playback: <  (magnify)> /<  (index)> |  | < (Playback)> button |
 | Lamp |  | Flash |
 | Step ring |  | < (Flash up)> switch |
 | Continuous ring |  | Speaker |
 | Lens hood/filter adapter mount |  |  (N-Mark)*1 |
 | Lens |  | Tripod socket |
 | Mode dial |  | Memory card/battery cover |
 | Shutter button |  | DC coupler cable port |
 | Power button |

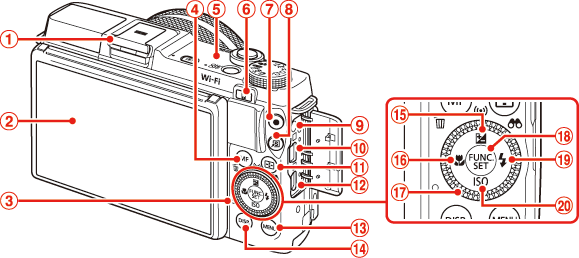

| Hot shoe / Hot shoe cap | | < (AF frame selector)> / < (Filtering image display)>button |
| Screen (LCD monitor)*2 | | HDMI TM terminal |
| Indicator | | < > button |
| < (Manual focus)> / < (Single-image erase)> button | | < (Display)> button |
| Wi-Fi antenna area | | < (Exposure compensation)> /<  (Wi-Fi)> / Up button |
| < (Mobile device connection)>button | | < (Macro)> / Left button |
| Movie button | | Control dial |
| < (Shortcut)> button | | FUNC./SET button |
| Remote terminal | | < (Flash)> / Right button |
| AV OUT (Audio/video output) / DIGITAL terminal |  | < (ISO speed)> / Down button |

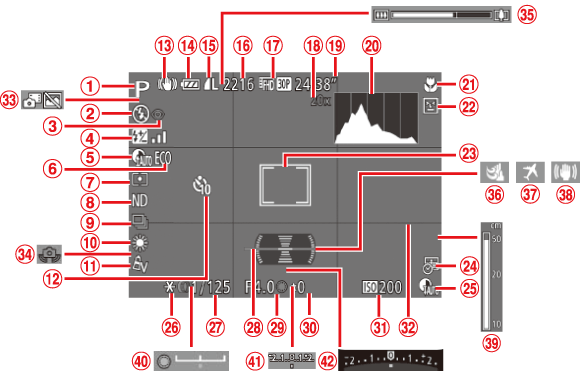

| Shooting mode, Scene icon |  | Blink detection |
| Flash mode, LED light |  | AF frame, Spot AE point frame |
| Red-eye correction |  | Date stamp |
| Flash exposure compensation / Flash output level, Star emphasis, Color adjustment |  | DR correction |
| Shadow correction, i-Contrast |  | AE lock, FE lock |
| Eco mode |  | Shutter speed |
| Metering method |  | Electronic level |
| ND filter |  | Aperture value |
| Drive mode, AEB shooting, Focus bracketing |  | Exposure compensation level |
| Mercury lamp correction, White balance |  | ISO speed |
| My Colors |  | Grid lines |
| Self-timer |  | Hybrid Auto mode |
| IS mode icon |  | Camera shake warning |
| Battery level |  | Zoom bar |
| Still image compression, Resolution |  | Wind filter |
| Recordable shots*1 |  | Time zone |
| Movie quality |  | Image stabilization |
| Digital zoom magnification, Digital tele-converter |  | MF indicator |
| Remaining time |  | Exposure shift bar |
| Histogram |  | Exposure level |
 | Focusing range, AF lock |  | Exposure compensation bar |
] mode, indicates the number of shots available.
NOTE
- Some information may not be displayed when viewing images on a TV

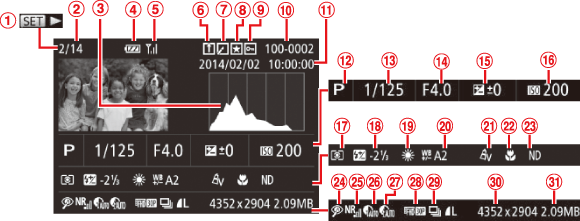

| Movies | | Metering method, Star timelapse movie frame rate |
| Current image no. / Total no. of images | | Flash, Flash exposure compensation |
| Histogram | | White balance |
| Battery level | | White balance correction |
| Wi-Fi signal strength | | My Colors Mercury lamp correction, Creative Shot effect, Star timelapse movie effect |
| Image Sync | | Focusing range |
| Image editing, Movie compression | | ND filter |
| Favorites | | Red-eye correction |
| Protection | | High ISO NR |
| Folder number - File number | | DR correction |
| Shooting date/time | | Shadow correction, i-Contrast, Star time-lapse movie shooting interval |
| Shooting mode | | Compression (image quality) / Resolution, Digest movies, RAW, MP4 (movies) |
| Shutter speed (still images), Image quality / Frame rate (movies) | | Group playback |
| Aperture value, Image quality (movies) | | Still images: Resolution Movies: Playback time |
| Exposure compensation level, Exposure shift level | | File size |
| ISO speed, Playback speed |
