Name of components and information displayed on the screen (SX700 HS)
Solution
PowerShot SX700 HS

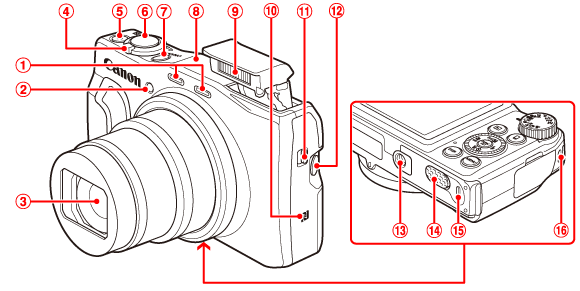

 | Microphone |  | Flash |
 | Lamp |  |  (N-Mark)* |
 | Lens |  | <  (Flash up)> switch |
 | Zoom lever Shooting: <  (telephoto)> / < (wide angle)>Playback: <  (magnify)> / < (index)> |  | < (Framing Assist – Seek)> button |
 | Movie button |  | Tripod socket |
 | Shutter button |  | DC coupler terminal cover |
 | Power button |  | Memory card/battery cover |
 | Wi-Fi antenna area |  | Strap mount |

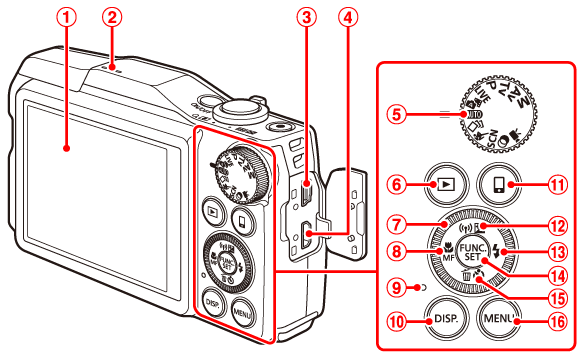

| Screen (LCD monitor) | | Indicator |
| Speaker | | < (Display)> button |
| AV OUT (Audio/video output) / DIGITAL terminal | | < (Mobile device connection)>button |
| HDMITM terminal | | < (Exposure compensation)> / < (Wi-Fi)> / Up button |
| Mode dial | | < (Flash)> / Right button |
| < (Playback)> button | | FUNC./SET button |
| Control dial | | < (Self-timer)> / < (Singleimage erase)> / Down button |
| < (Macro)> / < (Manual focus)> / Left button | | < > button |

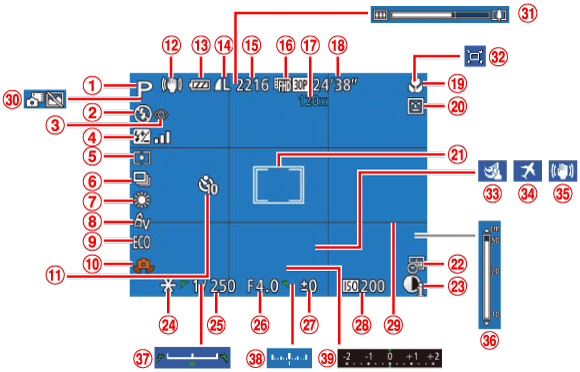

| Shooting mode, Scene icon |  | AF frame, Spot AE point frame |
| Flash mode |  | Date stamp |
| Red-eye correction |  | i-Contrast |
| Flash exposure compensation / Flash output level |  | AE lock, FE lock |
| Metering method |  | Shutter speed |
| Drive mode |  | Aperture value |
| Mercury lamp correction, White balance |  | Exposure compensation level |
| My Colors |  | ISO speed |
| Eco mode |  | Grid lines |
| Camera shake warning |  | Hybrid Auto mode |
| Self-timer |  | Zoom bar |
| IS mode icon |  | Auto |
| Battery level |  | Wind filter |
| Still image compression, Resolution |  | Time zone |
| Recordable shots* |  | Image stabilization |
| Movie quality |  | MF indicator |
 | Digital zoom magnification, Digital tele-converter |  | Exposure shift bar |
 | Remaining time |  | Exposure level |
 | Focusing range, AF lock |  | Exposure compensation bar |
 | Blink detection |
] mode, indicates the number of shots available
NOTE
•Some information may not be displayed when viewing images on a TV

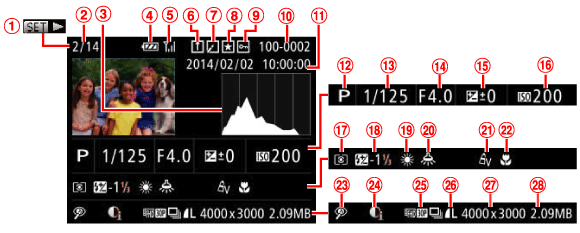

| Movies, High-speed burst HQ | | Exposure compensation level, Exposure shift level |
| Current image no. / Total no. of images | | ISO speed |
| Histogram | | Metering method |
| Battery level | | Flash, Flash exposure compensation |
| Wi-Fi signal strength | | White balance |
| Image Sync | | Mercury lamp correction |
| Image editing, Movie compression | | My Colors, Creative Shot effect |
| Favorites | | Focusing range |
| Protection | | Red-eye correction |
| Folder number - File number | | i-Contrast |
| Shooting date/time | | Digest movies, Group playback, Image quality (movies) |
| Shooting mode | | Compression (image quality) / Resolution, MP4 (movies) |
| Shutter speed | | Still images: Resolution Movies: Playback time |
