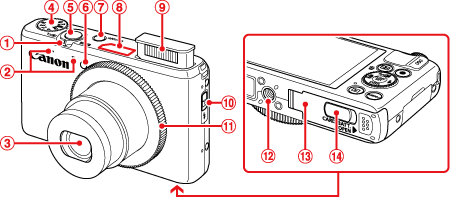

 | Zoom lever Shooting: <  (telephoto)> / < (wide angle)>Playback: <  (magnify)> / < (index)> |  | Wi-Fi antenna area |
 | Microphone |  | Flash |
 | Lens |  | < (Flash up)> switch |
 | Mode dial |  | Control ring |
 | Shutter button |  | Tripod socket |
 | Lamp |  | Memory card/battery cover |
 | Power button |  | DC coupler terminal cover |
| Strap mount | | < > button |
| Screen (LCD monitor) | | < (Playback)> button |
| Indicator | | < (Exposure compensation)> / < (Wi-Fi)> / Up button |
| < (AF frame selector)> / < (Single-image erase)> button | | < (Macro)> / <  (Manual focus)> / Left button |
| Movie button | | Control dial |
| Speaker | | FUNC./SET button |
| AV OUT (Audio/video output) / DIGITAL terminal |  | < (Flash)> / Right button |
| HDMITM terminal |  | < (Display)> / Down button |
| Battery level |  | Red-eye correction |
| White balance |  | Flash exposure compensation / Flash output level |
| My Colors |  | Spot AE point frame |
| Drive mode |  | Date stamp |
| Eco mode |  | ISO speed |
| Self-timer |  | AE lock, FE lock |
| AF frame |  | Shutter speed |
| Camera shake warning |  | Grid lines |
| Metering method |  | Aperture value |
| Still image compression, Resolution |  | Exposure compensation level |
| Recordable shots |  | i-Contrast |
| Movie resolution |  | Zoom bar |
| Remaining time |  | Blink detection |
| Focal length, Digital zoom magnification, Digital tele-converter |  | MF indicator |
| Focusing range, AF lock, IS mode icon |  | Wind filter |
| Shooting mode, Scene icon |  | Time zone |
 | Flash mode |  | Image stabilization |

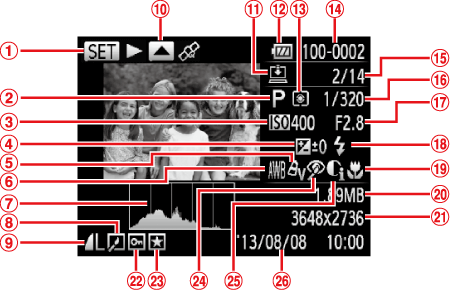

| Movies, High-speed burst | | Folder number - File number |
| Shooting mode | | Current image no. / Total no. of images |
| ISO speed, Playback speed | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Exposure compensation level | | Aperture value, Image quality (movies) |
| My Colors | | Flash, Flash exposure compensation |
| White balance | | Focusing range |
| Histogram | | File size |
| Group playback, Image editing | | Still images: Resolution Movies: Playback time |
| Compression (image quality) / Resolution, MOV (movies) | | Protection |
| GPS information display | | Favorites |
| Image Sync | | Red-eye correction |
| Battery level | | i-Contrast |
| Metering method | | Shooting date/time |
