Last Updated: 28 Feb 2012 Issue Number: 8201457600

Name of components and information displayed on the screen (PowerShot A810 / A1300)

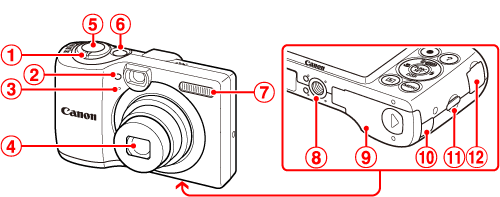

	Zoom lever Shooting: (telephoto) / (wide angle) Playback: (magnify) / (index)		Flash
	Lamp		Tripod socket
	Microphone		Memory card/battery cover
	Lens		DC coupler cable port
	Shutter button		Strap mount
	Power button		AV OUT (Audio/video output) / DIGITAL terminal

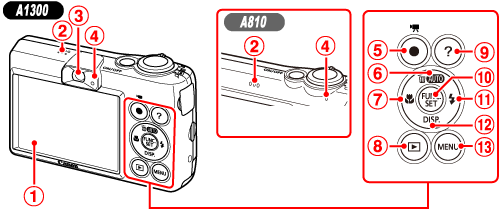

	Screen (LCD monitor)		(Playback) button
	Speaker		(Help) button
	Viewfinder		FUNC./SET button
	Indicator		(Flash) / Right button
	Movie button		(Display) / Down button
	(Auto) / (Single image erase) / Up button		button
	(Macro) / Left button

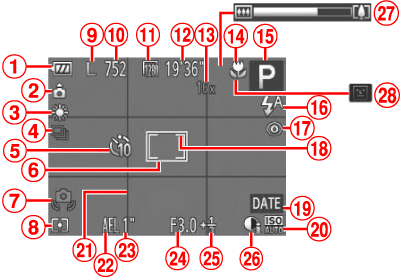

	Battery level		Shooting mode, Scene icon
	Camera orientation*		Flash mode
	White balance		Red-eye correction
	Drive mode		Spot AE point frame
	Self-timer		Date stamp
	AF frame		ISO speed
	Camera shake warning		Grid lines
	Metering method		AE lock, FE lock
	Still image resolution		Shutter speed
	Recordable shots		Aperture value
	Movie resolution		Exposure compensation level
	Remaining time		i-Contrast
	Digital zoom magnification		Zoom bar
	Focusing range, AF lock		Blink detection

: Regular orientation,

: Held vertically

The camera detects the shooting orientation and adjusts settings for optimal shots.

Orientation is also detected during playback, and in either orientation, the camera automatically rotates images as needed.

However, the orientation may not be detected correctly when the camera is pointed straight up or down.

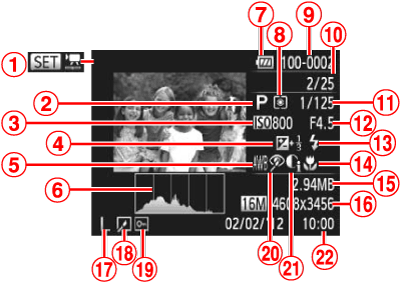

	Movie		Aperture value
	Shooting mode		Flash
	ISO speed		Focusing range
	Exposure compensation level		File size
	White balance		Still images: Resolution Movies: Movie length
	Histogram		Resolution, MOV (movies)
	Battery level		Image editing
	Metering method		Protection
	Folder number - File number		Red-eye correction
	Current image no. / Total no. of images		i-Contrast
	Shutter speed (still images), Image quality / Frame rate (movies)		Shooting date/time
