Name of components and information displayed on the screen (PowerShot ELPH 510 HS / IXUS 1100 HS)
Solution

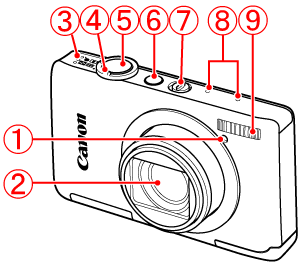

 | Lamp |  | Power Button |
 | Lens |  | Mode Switch |
 | Speaker |  | Microphones |
 | Zoom Lever Shooting:  (Telephoto) /  (Wide Angle)Playback:  (Magnify) /  (Index) |  | Flash |
 | Shutter Button |

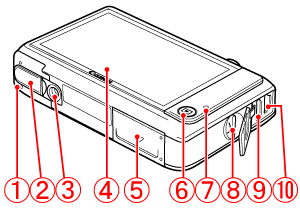

| Battery Cover | |  (Playback) Button |
| DC Coupler Terminal Cover | | Indicator |
| Tripod Socket | | Strap Mount |
| Screen (LCD Monitor) | | HDMI Terminal |
| Memory Card Slot Cover |  | A/V OUT (Audio/Video Output) / DIGITAL Terminal |

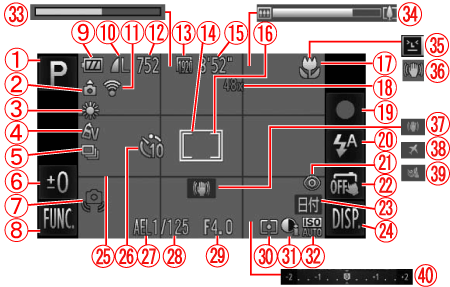

| Shooting Mode, Scene Icon |  | Red-Eye Correction |
| Camera Orientation* |  | Touch Shutter |
| White Balance |  | Date Stamp |
| My Colors |  | DISP. (Display) |
| Drive Mode |  | Grid Lines |
| Exposure Compensation Amount |  | Self-Timer |
| Camera Shake Warning |  | AE Lock, FE Lock |
| FUNC. (Function) |  | Shutter Speed |
| Battery Charge Indicator |  | Aperture Value |
| Compression (Image Quality) / Recording Pixels |  | Metering Method |
 | Eye-Fi Connection Status |  | i-Contrast |
 | Recordable Shots |  | ISO Speed |
 | Image Quality (Movies) |  | Super Slow Motion Movie Shooting Time |
 | AF Frame |  | Zoom Bar |
 | Remaining Time |  | Blink Detection |
 | Spot AE Point Frame |  | IS Mode Icon |
 | Focusing Range, AF Lock |  | IS Mode |
 | Digital Zoom Magnification / Digital Tele-converter |  | Time Zone |
 | Shooting Movies |  | Wind Filter |
 | Flash Mode |  | Exposure Compensation Bar |
*
: Standard,
: Held vertically
: Standard, : Held verticallyWhen shooting, the camera detects if it is held vertically or horizontally, and adjusts settings accordingly for the best shot. It also detects orientation during playback, so you can hold the camera in either orientation and it will automatically rotate images for correct viewing. This function may not operate correctly when the camera is pointed straight up or down.

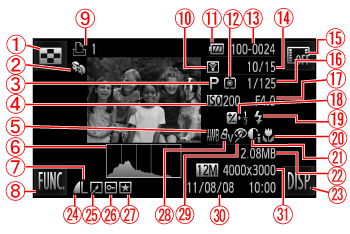

| Index Display | | Aperture Value |
| My Category | | Exposure Compensation Amount |
| Movies, High-speed Burst, Shooting Mode | | Flash |
| ISO Speed, Playback Speed | | Focusing Range |
| White Balance | | i-Contrast |
| Histogram | | File Size |
| Recording Pixels, MOV (Movies) | | DISP. (Display) |
| FUNC. (Function) | | Compression (Image Quality) |
| Print List | | Group Playback, Image Editing |
| Eye-Fi Transfer Complete | | Protect |
| Battery Charge Indicator | | Favorites |
| Metering Method | | My Colors |
| Folder Number – File Number | | Red-Eye Correction |
| Displayed image number / Total number of images | | Shooting Date and Time |
| No Information Display | | Still Images: Recording Pixels Movies: Movie Length |
| Shutter Speed (Still Images), Image Quality / Frame Rate (Movies) |
