Printing Area
Solution
To ensure the best print quality, the printer allows a margin along each edge of media. The actual printable area will be the area inside these margins.

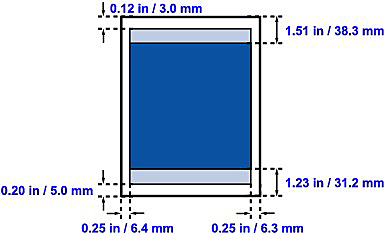

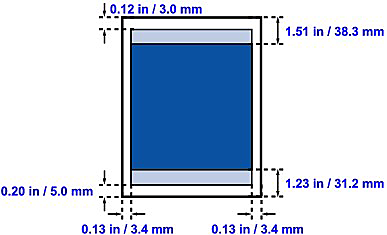

Recommended printing area
: Canon recommends that you print within this area.
: Canon recommends that you print within this area.Printable area
: The area where it is possible to print.
: The area where it is possible to print.However, printing in this area can affect the print quality or the paper feed precision.
NOTE
Borderless Printing
-By selecting Borderless Printing option, you can make prints with no margins.
-When performing Borderless Printing, slight cropping may occur at the edges since the printed image is enlarged to fill the whole page.
For Borderless Printing, use the following paper.
- Glossy Photo Paper "Everyday Use" GP-501
- Photo Paper Glossy GP-502
- Photo Paper Plus Semi-Gloss SG-201
- Photo Paper Plus Glossy II PP-201
- Photo Paper Pro II PR-201
- Matte Photo Paper MP-101
Performing Borderless Printing on any other type of paper may substantially reduce printing quality and/or result in printouts with altered color hues.
Borderless Printing on plain paper may result in printouts with reduced quality. Use them only for test printing.
-Depending on the type of paper, Borderless Printing may reduce the print quality at the top and bottom edges of the paper or cause these parts to become smudged.
| Size | Printable Area (width x height) |
| Letter | 8.00 x 10.69 inches / 203.2 x 271.4 mm |
| Legal | 8.00 x 13.69 inches / 203.2 x 347.6 mm |
Recommended printing areaPrintable area| Size | Recommended Printing Area (width x height) |
| European DL* | 4.06 x 7.12 inches / 103.2 x 180.8 mm |
| US Comm. Env. #10* | 3.86 x 7.96 inches / 98.0 x 202.1 mm |
Recommended printing area| Size | Printable Area (width x height) |
| A5 | 5.56 x 7.95 inches / 141.2 x 202.0 mm |
| A4 | 8.00 x 11.38 inches / 203.2 x 289.0 mm |
| B5 | 6.90 x 9.80 inches / 175.2 x 249.0 mm |
| 4" x 6" / 10 x 15 cm | 3.73 x 5.69 inches / 94.8 x 144.4 mm |
| 4" x 8" / 10 x 20 cm | 3.73 x 7.69 inches / 94.8 x 195.2 mm |
| 5" x 7" / 13 x 18 cm | 4.73 x 6.69 inches / 120.2 x 169.8 mm |
| 8" x 10" / 2 x 25 cm | 7.73 x 9.69 inches / 196.4 x 246.0 mm |
| Wide | 3.73 x 6.80 inches / 94.8 x 172.6 mm |
Recommended printing areaPrintable area
