Solution
This printer has two output trays: "face-down output tray" and "face-up output slot".
Do not switch one output tray to another during printing. This may result in paper jams.
Face-down Output Tray

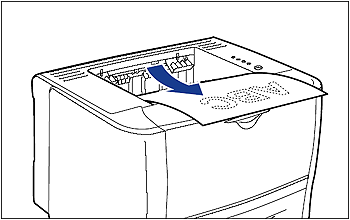

Printed paper is output to the face-down output tray on the top of the printer with the printed side facing down.
IMPORTANT
- Printed paper can be output only to the face-down output tray when performing automatic 2-sided printing.

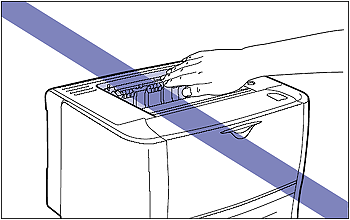

- During 2-sided printing, do not touch the paper until it is output to the face-down output tray completely. During 2-sided printing, the paper is first output partially after the front side is printed, and then it is fed again to be printed on the reverse side.
- The face-down output tray and its surroundings become hot during or immediately after using the printer. Do not touch the face-down output tray and its surroundings when removing the jammed paper or performing the related operation.
NOTE
The face-down output tray can hold up to approximately 125 sheets of plain paper (64 g/m
). The paper capacity varies depending on the paper size or paper type. For more details, see "Paper Capacity of the Output Trays" below in this page.
Face-up Output Slot
Printed paper is output to the face-up output slot on the rear side of the printer with the printed side facing up.
The face-up output slot is suitable to print transparencies, labels, Index Card, or envelopes which tend to curl, since the printed paper is output flattened.
IMPORTANT
- When outputting paper to the face-up output slot, you cannot perform automatic 2-sided printing.
- When paper is output to the face-up output slot, take out one piece at a time each time it is output.
Paper Capacity of the Output Tray
-: The paper cannot be output
| Paper Type | Paper Capacity* |
| Face-down Output Tray | Face-up Output Slot |
| Plain Paper (64 g/m) | Approx. 125 sheets | - |
| Heavy Paper (91 g/m) | Approx. 50 sheets | - |
| Heavy Paper (128 g/m) | Approx. 30 sheets | 1 sheet |
| Transparency | 1 sheet | 1 sheet |
| Label | Approx. 10 sheets | 1 sheet |
| Index Card | Approx. 10 sheets | 1 sheet |
| Envelope | Approx. 10 sheets | 1 sheet |
* Actual paper capacity varies depending on the installation environment, paper type, or paper size.
Switching to the Face-up Output Slot

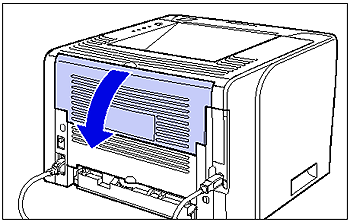

When switching to the face-up output slot, open the output selection cover as shown in the figure.
Switching to the Face-down Output Tray
When switching to the face-down output tray, close the output selection cover as shown in the figure.
