EOS-1D X Mark III 鏡頭及可用自動對焦點對應表 | EOS-1D X Mark III Lenses and Usable AF Points List

EOS-1D X Mark III 鏡頭及可用自動對焦點對應表/ EOS-1D X Mark III Lenses and Usable AF Points List

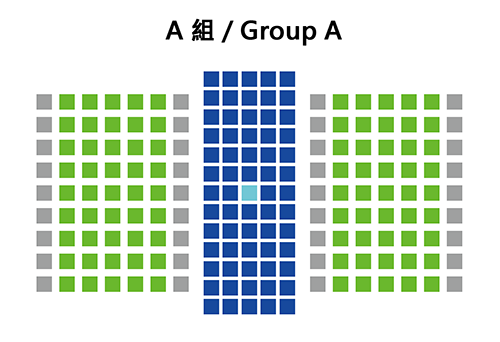

[A 組] 155個十字型自動對焦點（包括1 個雙十字型自動對焦點）及36 個垂直自動對焦點 [Group A] 155 Cross-type AF points (1 Dual cross-type AF points) and 36 Vertical AF points
對應f/2.8 及f/5.6雙十字型自動對焦點｜f/2.8 Dual cross-type AF point 對應f/4及f/5.6十字型自動對焦點｜f/4, f/5.6 Cross-type AF point 對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 14mm f/2.8L USM EF 14mm f/2.8L II USM EF 15mm f/2.8 Fisheye EF 20mm f/2.8 USM EF 24mm f/1.4L USM EF 24mm f/1.4L II USM EF 24mm f/2.8 EF 24mm f/2.8 IS USM EF 28mm f/1.8 USM EF 28mm f/2.8 IS USM EF 35mm f/1.4L USM EF 35mm f/1.4L II USM EF 35mm f/2 EF 35mm f/2 IS USM EF 50mm f/1.0L USM EF 50mm f/1.2L USM EF 50mm f/1.4 USM EF 50mm f/1.8 EF 50mm f/1.8 II EF 50mm f/1.8 STM EF 85mm f/1.2L USM EF 85mm f/1.2L II USM EF 85mm f/1.4L IS USM EF 85mm f/1.8 USM EF 100mm f/2 USM EF 135mm f/2L USM EF 135mm f/2L USM + Extender EF 1.4x I/II/III EF 135mm f/2.8 Softfocus EF 200mm f/1.8L USM EF 200mm f/1.8L USM + Extender EF 1.4x I/II/III* EF 200mm f/2L IS USM EF 200mm f/2L IS USM+ Extender EF 1.4x I/II/III EF 200mm f/2.8L USM EF 200mm f/2.8L II USM EF 300mm f/2.8L USM EF 300mm f/2.8L IS USM EF 300mm f/2.8L IS II USM EF 400mm f/2.8L USM EF 400mm f/2.8L II USM EF 400mm f/2.8L IS USM EF 400mm f/2.8L IS II USM EF 400mm f/2.8L IS III USM TS-E 45mm f/2.8 TS-E 90mm f/2.8	EF 16-35mm f/2.8L USM EF 16-35mm f/2.8L II USM EF 16-35mm f/2.8L III USM EF 17-35mm f/2.8L USM EF 20-35mm f/2.8L EF 24-70mm f/2.8L USM EF 24-70mm f/2.8L II USM EF 28-70mm f/2.8L USM EF 70-200mm f/2.8L USM EF 70-200mm f/2.8L IS USM EF 70-200mm f/2.8L IS II USM EF 70-200mm f/2.8L IS III USM EF 80-200mm f/2.8L

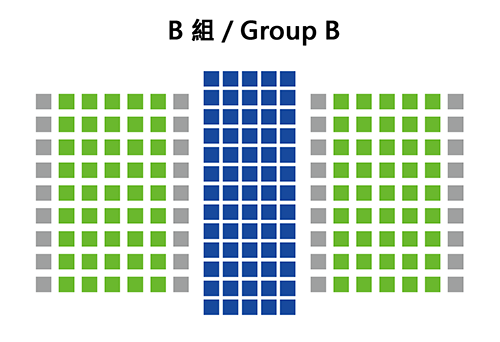

[B 組] 155個十字型自動對焦點及36 個垂直自動對焦點 [Group B] 155 Cross-type AF points and 36 Vertical AF points
對應f/4及f/5.6十字型自動對焦點｜f/4, f/5.6 Cross-type AF point  對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point  對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 50mm f/2.5 Compact macro EF 100mm f/2.8 Macro EF 100mm f/2.8L Macro IS USM EF 135mm f/2L USM + Extender EF 2x I/II/III EF 200mm f/1.8L USM + Extender EF 2x I/II/III* EF 200mm f/2L IS USM + Extender EF 2x I/II/III EF 200mm f/2.8L USM + Extender EF 1.4x I/II/III EF 200mm f/2.8L II USM + Extender EF 1.4x I/II/III EF 300mm f/2.8L USM + Extender EF 1.4x I/II/III* EF 300mm f/2.8L IS USM + Extender EF 1.4x I/II/III EF 300mm f/2.8L IS II USM + Extender EF 1.4x I/II/III EF 300mm f/4L USM EF 300mm f/4L IS USM EF 400mm f/2.8L USM + Extender EF 1.4x I/II/III* EF 400mm f/2.8L II USM + Extender EF 1.4x I/II/III* EF 400mm f/2.8L IS USM + Extender EF 1.4x I/II/III EF 400mm f/2.8L IS II USM + Extender EF 1.4x I/II/III EF 400mm f/2.8L IS III USM + Extender EF 1.4x I/II/III EF 400mm f/4 DO IS USM EF 400mm f/4 DO IS II USM EF 500mm f/4L IS USM EF 500mm f/4L IS II USM EF 600mm f/4L USM EF 600mm f/4L IS USM EF 600mm f/4L IS II USM EF 600mm f/4L IS III USM TS-E 17mm f/4L TS-E 24mm f/3.5L TS-E 24mm f/3.5L II TS-E 50mm f/2.8L Macro TS-E 90mm f/2.8L Macro TS-E 135mm f/4L Macro	EF 8-15mm f/4L Fisheye USM EF 16-35mm f/4L IS USM EF 17-40mm f/4L USM EF 24-70mm f/4L IS USM EF 24-105mm f/4L IS USM EF 24-105mm f/4L IS II USM EF 28-80mm f/2.8-4L USM EF 70-200mm f/2.8L USM + Extender EF 1.4x I/II/III^ EF 70-200mm f/2.8L IS USM + Extender EF 1.4x I/II/III EF 70-200mm f/2.8L IS II USM + Extender EF 1.4x I/II/III EF 70-200mm f/2.8L IS III USM + Extender EF 1.4x I/II/III EF 28-80mm f/2.8-4L USM EF 28-80mm f/2.8-4L USM EF 70-200mm f/4L USM EF 70-200mm f/4L IS USM EF 70-200mm f/4L IS II USM EF 70-210mm f/4

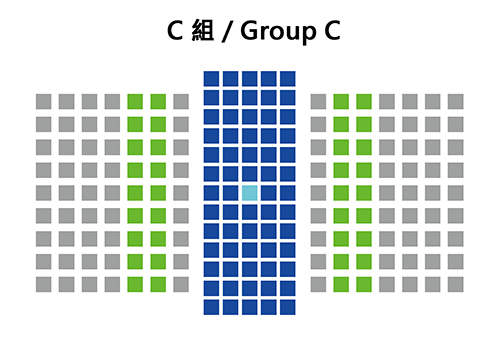

[C 組] 101個十字型自動對焦點（包括1 個雙十字型自動對焦點）及90 個垂直自動對焦點 [Group C] 101 Cross-type AF points (1 Dual cross-type AF points) and 90 Vertical AF points
對應f/2.8 及f/5.6雙十字型自動對焦點｜f/2.8 Dual cross-type AF point  對應f/4及f/5.6十字型自動對焦點｜f/4, f/5.6 Cross-type AF point  對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point  對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 28mm f/2.8 EF 40mm f/2.8 STM

[D 組] 101個十字型自動對焦點及90 個垂直自動對焦點 [Group D] 101 Cross-type AF points and 90 Vertical AF points
對應f/4及f/5.6十字型自動對焦點｜f/4, f/5.6 Cross-type AF point  對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 11-24mm f/4L USM EF 200-400mm f/4L IS USM Extender 1.4x

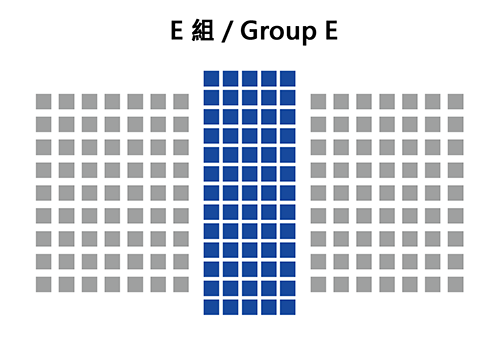

[E 組] 65個十字型自動對焦點及126 個垂直自動對焦點 [Group E] 65 Cross-type AF points and 126 Vertical AF points
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 50mm f/2.5 Compact macro + LIFE SIZE Converter EF EF 100mm f/2.8 Macro USM EF 200mm f/2.8L USM + Extender EF 2x I/II/III EF 200mm f/2.8L II USM + Extender EF 2x I/II/III EF 300mm f/2.8L USM + Extender EF 2x I/II/III* EF 300mm f/2.8L IS USM + Extender EF 2x I/II/III EF 300mm f/2.8L IS II USM + Extender EF 2x I/II/III EF 300mm f/4L USM + Extender EF 1.4x I/II/III EF 300mm f/4L IS USM + Extender EF 1.4x I/II/III EF 400mm f/2.8L USM + Extender EF 2x I/II/III* EF 400mm f/2.8L II USM + Extender EF 2x I/II/III* EF 400mm f/2.8L IS USM + Extender EF 2x I/II/III EF 400mm f/2.8L IS II USM + Extender EF 2x I/II/III EF 400mm f/2.8L IS III USM + Extender EF 2x I/II/III EF 400mm f/4 DO IS USM + Extender EF 1.4x I/II/III EF 400mm f/4 DO IS II USM + Extender EF 1.4x I/II/III EF 400mm f/5.6L USM EF 500mm f/4L IS USM + Extender EF 1.4x I/II/III EF 500mm f/4L IS II USM + Extender EF 1.4x I/II/III EF 500mm f/4.5L USM EF 600mm f/4L USM + Extender EF 1.4x I/II/III* EF 600mm f/4L IS USM + Extender EF 1.4x I/II/III EF 600mm f/4L IS II USM + Extender EF 1.4x I/II/III EF 600mm f/4L IS III USM + Extender EF 1.4x I/II/III	EF 20-35mm f/3.5-4.5 USM EF 24-85mm f/3.5-4.5 USM EF 24-105mm f/3.5-5.6 IS STM EF 28-90mm f/4-5.6 EF 28-90mm f/4-5.6 USM EF 28-90mm f/4-5.6 II EF 28-90mm f/4-5.6 II USM EF 28-90mm f/4-5.6 III EF 28-105mm f/3.5-4.5 USM EF 28-105mm f/3.5-4.5 II USM EF 28-135mm f/3.5-5.6 IS USM EF 28-200mm f/3.5-5.6 EF 28-200mm f/3.5-5.6 USM EF 28-300mm f/3.5-5.6L IS USM EF 35-105mm f/3.5-4.5 EF 35-135mm f/3.5-4.5 EF 35-135mm f/4-5.6 USM EF 38-76mm f/4.5-5.6 EF 50-200mm f/3.5-4.5 EF 50-200mm f/3.5-4.5L EF 55-200mm f/4.5-5.6 USM EF 55-200mm f/4.5-5.6 II USM EF 70-200mm f/2.8L USM + Extender EF 2x I/II/III^ EF 70-200mm f/2.8L IS USM + Extender EF 2x I/II/III EF 70-200mm f/2.8L IS II USM + Extender EF 2x I/II/III EF 70-200mm f/2.8L IS III USM + Extender EF 2x I/II/III EF 70-200mm f/4L USM + Extender EF 1.4x I/II/III EF 70-200mm f/4L IS USM + Extender EF 1.4x I/II/III EF 70-200mm f/4L IS II USM + Extender EF 1.4x I/II/III EF 70-210mm f/3.5-4.5 USM EF 70-300mm f/4-5.6 IS USM EF 70-300mm f/4-5.6 IS II USM EF 70-300mm f/4-5.6L IS USM EF 70-300mm f/4.5-5.6 DO IS USM EF 75-300mm f/4-5.6 EF 75-300mm f/4-5.6 USM EF 75-300mm f/4-5.6 II EF 75-300mm f/4-5.6 II USM EF 75-300mm f/4-5.6 III EF 75-300mm f/4-5.6 III USM EF 75-300mm f/4-5.6 IS USM EF 80-200mm f/4.5-5.6 EF 90-300mm f/4.5-5.6 EF 90-300mm f/4.5-5.6 USM EF 100-200mm f/4.5A EF 100-300mm f/4.5-5.6 USM EF 100-300mm f/5.6 EF 100-300mm f/5.6L EF 100-400mm f/4.5-5.6L IS USM EF 100-400mm f/4.5-5.6L IS II USM EF 200-400mm f/4L IS USM Extender 1.4x：當內置增距鏡設定為1x (With built-in Extender is set to 1.4x) EF 200-400mm f/4L IS USM Extender 1.4x + Extender EF 1.4x I/II/III

[E 組(f/8)] 65個十字型自動對焦點及126 個垂直自動對焦點 [Group E(f/8)] 65 Cross-type AF points and 126 Vertical AF points
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 400mm f/4 DO IS USM + Extender EF 2x III EF 400mm f/4 DO IS II USM + Extender EF 2x III EF 400mm f/5.6L USM + Extender EF 1.4x III EF 500mm f/4L IS USM + Extender EF 2x III EF 500mm f/4L IS II USM + Extender EF 2x III EF 500mm f/4.5L USM + Extender EF 1.4x III* EF 600mm f/4L USM + Extender EF 2x III* EF 600mm f/4L IS USM + Extender EF 2x III EF 600mm f/4L IS II USM + Extender EF 2x III EF 600mm f/4L IS III USM + Extender EF 2x III	EF 100-400mm f/4.5-5.6L IS USM + Extender EF 1.4x III EF 100-400mm f/4.5-5.6L IS II USM + Extender EF 1.4x III EF 200-400mm f/4L IS USM Extender 1.4x：當內置增距鏡設定為1x (With built-in Extender is set to 1.4x) + Extender EF 1.4x III EF 200-400mm f/4L IS USM Extender 1.4x+ Extender EF 2x III

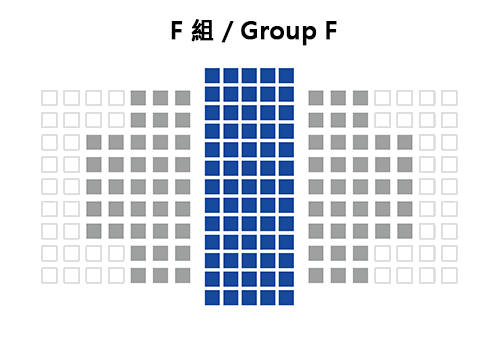

[F 組] 65個十字型自動對焦點及74 個垂直自動對焦點 [Group F] 65 Cross-type AF points and 74 Vertical AF points
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line) 無法使用的自動對焦點｜Disabled AF Points
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 800mm f/5.6L IS USM	EF 22-55mm f/4-5.6 USM EF 28-70mm f/3.5-4.5 EF 28-70mm f/3.5-4.5 II EF 28-80mm f/3.5-5.6 EF 28-80mm f/3.5-5.6 USM EF 28-80mm f/3.5-5.6 II EF 28-80mm f/3.5-5.6 III USM EF 28-80mm f/3.5-5.6 IV USM EF 28-80mm f/3.5-5.6 V USM EF 28-105mm f/4-5.6 EF 28-105mm f/4-5.6 USM EF 35-70mm f/3.5-4.5 EF 35-70mm f/3.5-4.5 A EF 35-80mm f/4-5.6 PZ EF 35-80mm f/4-5.6 USM EF 35-80mm f/4-5.6 II EF 35-80mm f/4-5.6 III EF 35-350mm f/3.5-5.6L USM EF 80-200mm f/4.5-5.6 USM

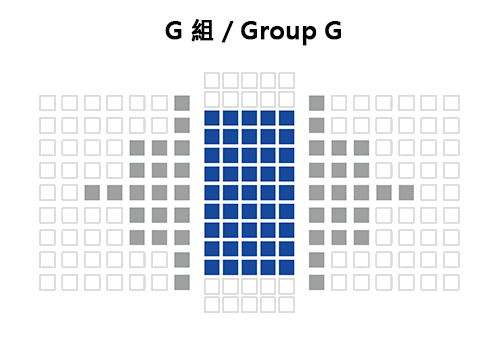

[G 組] 45個十字型自動對焦點及87 個垂直自動對焦點 [Group G] 45 Cross-type AF points and 87 Vertical AF points
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line)  無法使用的自動對焦點｜Disabled AF Points
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 180mm f/3.5L Macro USM EF 180mm f/3.5L Macro USM + Extender EF 1.4x I/II/III EF 1200mm f/5.6L USM

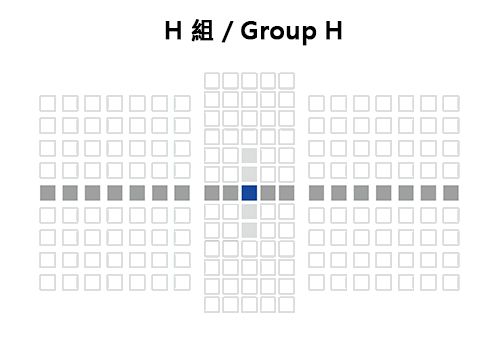

[H 組(f/8)] 1個十字型自動對焦點、19 個垂直自動對焦點及5 個水平自動對焦點 [Group H(f/8)] 15 Cross-type AF points, 19 Vertical AF points and 5 horizontal AF points
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line) 對應f/5.6 水平自動對焦點 (對垂直線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line) 無法使用的自動對焦點｜Disabled AF Points
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 300mm f/4L USM + Extender EF 2x III EF 300mm f/4L IS USM + Extender EF 2x III	EF 70-200mm f/4L USM + Extender EF 2x III EF 70-200mm f/4L IS USM + Extender EF 2x III EF 70-200mm f/4L IS II USM + Extender EF 2x III

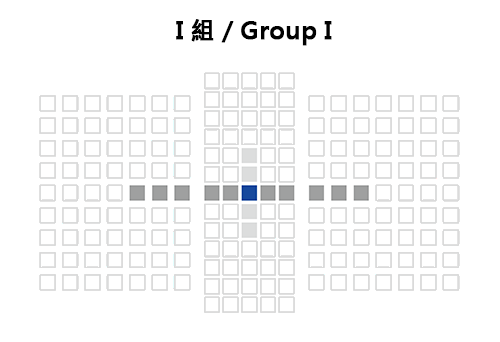

[I 組(f/8)] 1 個十字自動對焦點 、11個垂直自動對焦點及5個水平自動對焦點 [Group I (f/8)] 1 Cross-Type AF Point, 11 Vertical AF Point and 5 Horizontal AF Point
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 對應f/5.6垂直自動對焦點 (對水平線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line) 對應f/5.6 水平自動對焦點 (對垂直線條敏感)｜f/5.6 Vertical AF point (Sensitive to horizontal line) 無法使用的自動對焦點｜Disabled AF Points
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
EF 300mm f/4L USM + Extender EF 2x I/II EF 300mm f/4L IS USM + Extender EF 2x I/II EF 400mm f/4 DO IS USM + Extender EF 2x I/II EF 400mm f/4 DO IS II USM + Extender EF 2x I/II EF 400mm f/5.6L USM + Extender EF 1.4x I/II EF 500mm f/4L IS USM + Extender EF 2x I/II EF 500mm f/4L IS II USM + Extender EF 2x I/II EF 500mm f/4.5L USM + Extender EF 1.4x I/II* EF 600mm f/4L USM + Extender EF 2x I/II* EF 600mm f/4L IS USM + Extender EF 2x I/II EF 600mm f/4L IS II USM + Extender EF 2x I/II EF 600mm f/4L IS III USM + Extender EF 2x I/II EF 800mm f/5.6L IS USM + Extender EF 1.4x I/II/III EF 1200mm f/5.6L USM + Extender EF 1.4x I/II/III*	EF 70-200mm f/4L USM + Extender EF 2x I/II  EF 70-200mm f/4L IS USM + Extender EF 2x I/II EF 70-200mm f/4L IS II USM + Extender EF 2x I/II EF 100-400mm f/4.5-5.6L IS USM + Extender EF 1.4x I/II EF 100-400mm f/4.5-5.6L IS II USM + Extender EF 1.4x I/II EF 200-400mm f/4L IS USM Extender 1.4x：當內置增距鏡設定為1x (With built-in Extender is set to 1.4x) + Extender EF 1.4x I/II EF 200-400mm f/4L IS USM Extender 1.4x + Extender EF 2x I/II

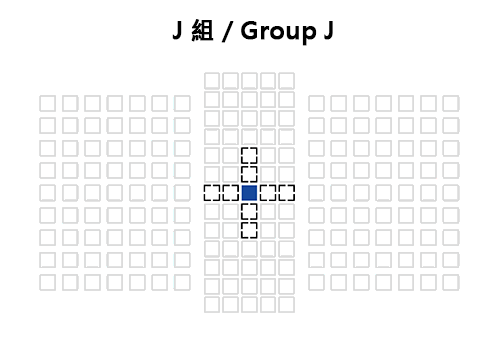

[J 組(f/8)] 1 個十字自動對焦點 [Group J (f/8)] 1 Cross-Type AF Point
對應f/5.6 十字型自動對焦點｜f/5.6 Cross-type AF point 無法使用的自動對焦點｜Disabled AF Points
定焦鏡頭 | Prime Lenses	變焦鏡頭 | Zoom Lenses
	EF 35-105mm f/4.5-5.6 EF 35-105mm f/4.5-5.6 USM

注意：EF 180mm f/3.5L Macro USM鏡頭安裝Extender EF2x (I/II/III)時，不能進行自動對焦。
^*與Extender EF 1.4x III 或 EF 2x III配合使用時，可能無法以自動對焦實現精確對焦。
^{^}此鏡頭及增距鏡組合可能無法以自動對焦實現精確對焦。
^#當使用TS-E鏡頭手動對焦至合焦時，觀景器中的對焦指示燈會亮起並發出嗶聲。自動對焦組別只適用於TS-E鏡頭無傾斜或偏移的情況。

Note: If Extender EF2x (I/II/III) is attached to the EF180mm f/3.5L Macro USM lens, AF cannot be performed.
^*When using in combination with Extender EF1.4x III or EF2x III, accurate focusing may not be achieved with AF.
^{^}Accurate focusing may not be achieved with AF for this lens and extender combination.
^#With a TS-E lens in use, focus indicator in the viewfinder can be displayed and the beeper will sound when focus is achieved with manual focusing. The lens group designation of TS-E lenses applies only when you do not use tilt or shift function.
