imageFORCE 1643 系列
imageFORCE 1643 系列
imageFORCE 1643 系列
imageFORCE 1643 系列將高速效能與直覺流暢的操控介面完美融合。無論是一鍵啟動列印任務，抑或是複雜的文件作業，均能輕鬆搞定。以極簡操作解鎖極致效率，並提供值得信賴的安全保障，讓企業營運事半功倍。
優惠
主要功能
特性
多重安全防禦，確保企業資產嚴密安全
具備無可比擬的安全防護，讓您在處理企業文件時充滿信心。imageFORCE 1643 系列配備強悍的安全機制，包括加密安全列印、開機系統驗證及使用者身分驗證，全面保障敏感數據，確保唯有獲授權人員方可存取，為企業資訊安全層層把關。
直覺化智慧操作，簡化日常辦公繁務

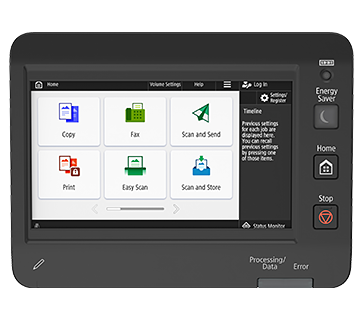

配備靈敏且可高度自訂的 7 吋彩色觸控螢幕，讓您輕鬆掌握各項工作流程。介面設計以人性化為核心，提供流暢的導航體驗、個人化快捷鍵設定，以及常用功能的快速存取，帶來無縫順暢的用戶體驗，全面提升辦公效率。
智慧化極致生產力，維護極速高效營運
透過智慧功能化繁為簡，輕鬆簡化日常作業。全新的「智能時間軸（Smart Timeline）」能自動學習您的使用習慣，主動呈現最常用的設定；結合引導式說明與內置 QR Code 支援，協助快速完成設定並將停機時間降至最低，讓您專注於關鍵業務發展。
規格
imageFORCE 1643 系列
下載手冊
Main unit
| Machine type | A4 monochrome laser multifunctional |
| Core functions |
imageFORCE 1643F: Print, copy, scan, send and fax
imageFORCE 1643: Print, copy, scan, send |
| Control panel | 7-inch TFT LCD WVGA colour touch panel |
| Memory
| 2.0 GB RAM
|
| Storage
| 30 GB eMMC
|
| Interface connection
| NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) ×2, USB 2.0 (Device) ×1 |
| Network security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
| Document security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
| Paper supply capacity (A4, 80 gsm) | Standard: Paper cassette: 550 sheets Multi-purpose tray: 100 sheets Maximum: 2300 sheets (with paper feeder PF-C1) |
| Paper output capacity (A4, 80 gsm) | 150 sheets |
| Toner yield (Estimated @ 5.0% coverage) | T06 Toner BK: 20,500 pages |
| Supported media sizes | Paper cassette: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, 16K, F4A (CHN) Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm) Multi-purpose tray: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, Index Card Envelope: COM10, Monarch, C5, DL (Overseas) Custom (Min. 76.2 × 127.0 mm to Max. 216.0 × 355.6 mm) |
| Supported media weights | Paper cassettes: 60 to 120 gsm
Multi-purpose tray: 60 to 199 gsm Duplex: 60 to 120 gsm |
| Warm-up time
| Quick startup mode: 4 Seconds or less*2 From sleep mode: 20 Seconds or less |
| Dimensions (W × D × H)
| 480 × 518 × 458 mm
|
| Installation space (W × D)
| 480 × 668 mm*3 |
| Weight*4 | Approx. 55.1 lb (25 kg)
|
| Print speed (BW) |
1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6) 2-sided: Up to 36 ppm (A4) |
| Print resolution (dpi) | 600 dpi × 600 dpi |
| Page description languages | Standard: UFR II, PCL6/PCL5, Adobe® PostScript®3™ |
| Direct print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
| Printing from mobile and cloud | AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
| Operating system | UFRII: Windows®10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PCL: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PPD: Windows® 10/11, macOS (10.15 or later) Note: At the timing of Jul, 2025. |
Copy
| Copy speed (BW and CL) |
1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6), up to 45 ppm (Letter) 2-sided: Up to 36 ppm (A4), up to 37 ppm (Letter) |
| First-copy-out time (A4, BW/CL) | A4: Approx. 6.3 sec |
| Copy resolution (dpi) |
600 × 600 dpi (Platen / default) 600 × 600 dpi (ADF) 300 × 600 dpi (ADF / default) |
| Multiple copies
| Up to 9,999 copies
|
| Copy density
| Automatic or manual (9 levels)
|
| Magnification
| Variable zoom: 25% to 400% (1% increments)
|
Scan
| Type | Standard: Single-pass Duplexing Automatic Document Feeder |
|
Document feeder paper capacity (80 gsm) |
Up to 50 sheets |
| Supported media sizes | Document feeder media size: A4, B5, A5, A6, LGL, LTR, STMT Custom size: 48.0 × 85.0 to 216.0 × 355.6 mm |
| Scan speed (ipm: A4) | 1-sided scanning: 50/50 (300 × 300 dpi, send), 50 (300 × 600 dpi, copy) 2-sided scanning: 100/100 (300 × 300 dpi, send), 100 (300 × 600 dpi, copy) |
| Scan resolution (dpi) | Scan for copy: up to 600 dpi × 600 dpi Scan for send: (Push, BW) up to 600 dpi × 600 dpi, (Pull, BW) up to 600 dpi × 600 dpi (Push, CL) up to 300 dpi × 300 dpi, (Pull, CL) up to 300 dpi × 300 dpi Scan for fax: up to 600 dpi × 600 dpi |
| Pull scan specifications | Color Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 As of Dec. 2024 |
Send
| Destination |
Standard: E-mail / Internet FAX (SMTP*5), SMB, FTP, WebDAV, Mail Box |
| Address book | LDAP (2,000) / Local (1,600) / Speed dial (200) |
| Communication protocol |
File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File format
| TIFF (MMR), JPEG, PDF (Compact, OCR (Text Searchable), Optimise for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, OCR (Text Searchable), Device Signature, User Signature), Office Open XML (PowerPoint, Word)
|
Fax (imageFORCE 1643F only)
| Maximum number of connection lines | 1 |
| Modem speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression method | MH, MR, MMR, JBIG |
| Resolution (dpi)
| 400 × 400 (Ultra fine), 200 × 400 (Super fine), 200 × 200 (Fine), 200 × 100 (Normal)
|
| FAX memory
| Up to 30,000 pages (2,000 jobs)
|
| Speed dials
| Max. 200
|
| Group dials/destinations
| Max. 199 dials
|
| Sequential broadcast
| Max. 256 addresses
|
Environmental
| Power source | 220-240 V, 50/60 Hz, 3.4 A |
| Power consumption | Maximum: Approx. 1,400 W Sleep mode: Approx. 1.0 W*6 |
Paper supply
| Paper feeder PF-C1 | Paper capacity: 550 sheets Paper type: Thin, Plain, Recycled, Colour, Heavy, Bond, Letterhead Paper size: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm) |
- Optional.
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Cassette and back door opened.
- Including regular toner.
- Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace.
- 1.0 W is not available in all circumstances due to certain settings.
