CR-N700
CR-N700
CR-N700
A high-end 4K PTZ remote camera which is capable of deliver superb image quality and supporting high quality video that aimed at fulfilling advanced workflows in the production market.
Promotion
Key Features
Fit for a Variety of Applications
Broadcast Stations
Sports Streaming
Event Streaming
Reality Shows
Features
4K 60P Image Quality
Deliver exceptional 4K UHD 60P video quality that supports professional production workflows with up to 4:2:2 10-bit.
1.0" CMOS Sensor & DIGIC DV 7
Features a 1.0-inch CMOS sensor paired with Canon's advanced DIGIC DV 7 image processor, delivering outstanding 4K image quality with enhanced colour reproduction and high-precision autofocus tracking capabilities.
15× Optical Zoom & 30× Advanced Zoom
1×
15×
30×
The CR-N700's high-performance lens has a 15× optical zoom (25.5 mm - 382.5 mm, 35 mm equivalent) plus a 30× Advanced Zoom when shooting in Full HD.
High-Precision Auto Focus Technology
Eye AF
Human eye is detected and closely tracks.
EOS iTR AF
Deep-learning autofocus technology locks onto a subject's head, even if they turn away.
Touch AF
Select your own focus point on screen with the Remote Camera Control Application or the controller.
Face Priority AF
Auto focus prioritize on human’s face.
Face Only AF
Auto focus responds when human face is detected.
Dual Pixel CMOS AF
A visual representation showing when a subject is in focus.
HDR Imagery
Capture breathtaking 4K HDR imagery in PQ or HLG formats. Professional picture settings, including Canon Log 3 and Wide Dynamic Range, ensure seamless integration with your Canon camera ecosystem.
Multiview Streaming with Crop Function
Video can be output as a main or secondary signal with up to two cropped areas and it can be set in FHD.
Built-In Recording
Supports Slow Motion Recording
Record in Full HD at up to 120 fps for smooth slow-motion playback.
Easy Video Playback
Playback recorded files directly via a web browser or RC-IP1000 PTZ Camera Controller .
Infrared (IR) Mode
Features infrared shooting for capturing images even in very low light conditions, which extends the spectrum visible to the camera.

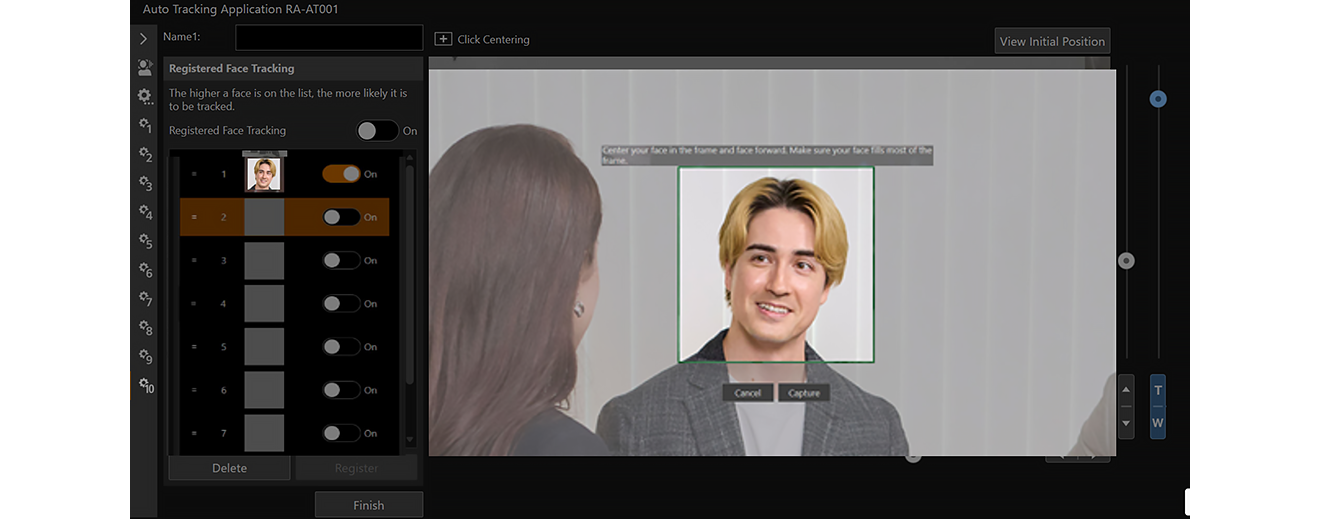

Registered Face Tracking
Register a subject's face to enable priority tracking, allowing the camera to automatically track the selected person for more consistent and reliable framing, even in scenes with multiple people.
*Available from firmware version 1.7.0 or later. A paid license is required for full functionality of auto tracking application.

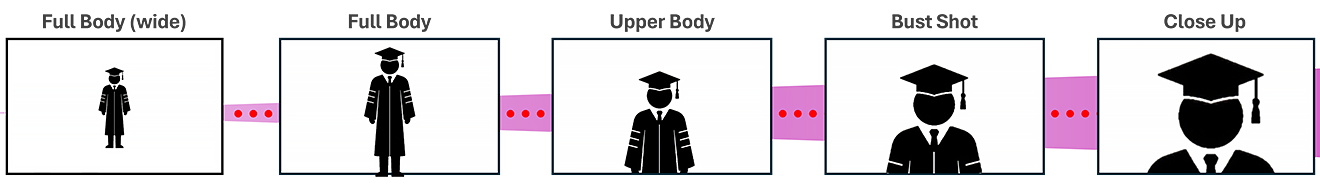

Flexible Framing for Every Scene
Enjoy greater flexibility with up to 21 framing steps for more precise composition control. With enhanced subject detection that can identify smaller subjects, you can achieve the ideal composition with ease.
*Available from firmware version 1.7.0 or later. A paid license is required for full functionality of auto tracking application.
Seamless Colour Matching with Custom Picture

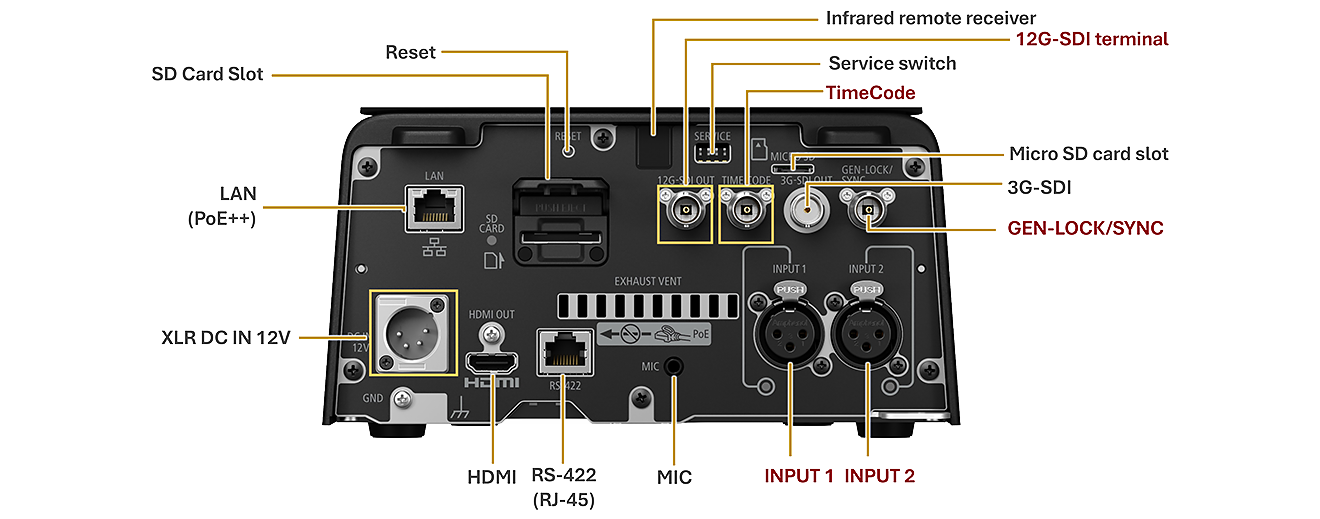

Comprehensive Connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) as well as dual XLR audio inputs. 3G-SDI and GEN-LOCK is included in CR-N700 too.
Compatible Control
Compatible with the RC-IP1000 PTZ Camera Controller, RC-IP300 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party controller.
Support for Multiple Industry-Standard Protocols
Integrate seamlessly into any production environment with comprehensive protocol support. The CR-N700 connects effortlessly with:
- XC Protocol
- NDI® HX2
- RTSP/RTP
- RTMP
- SRT
- FreeD
- Protocol Standard Communication
XC Protocol
Build flexible multi-device systems with Canon's XC Protocol, a shared IP control standard designed for video production. Seamlessly integrate and control multiple Canon devices over IP networks.
NDI® HX2
Streamline live video production workflows with NDI® HX2 support, the industry-trusted protocol developed by NewTek. Deliver professional-quality video over IP networks with ease.
RTMP
Stream video and audio instantly with RTMP support, enabling real-time playback without waiting for downloads. Perfect for live streaming and on-demand content delivery.
SRT
Achieve reliable, high-quality streaming even over unstable networks with SRT Protocol support. Delivers low-latency, secure video transport between any locations.
FreeD Protocol
Enable advanced virtual production workflows with FreeD Protocol support, the industry standard for transmitting camera tracking data in VR/AR environments.
Standard Communication
Connect with confidence using industry-standard control protocols widely adopted across video production and broadcasting. Ensures compatibility with existing equipment and established workflows.
Tools & Online Applications
Multi Camera Management App (MCMA)
Centralise the setup and management of multiple cameras with efficient configuration tools. Simplifies complex multi-camera systems, reducing setup time and operational costs across any production environment.
Remote Camera Control Application (RCCA)
Control up to 20 Canon PTZ and video cameras from your computer with this free software. Preview up to nine cameras simultaneously and adjust focus, pan, zoom, tilt, and exposure in real time.
Canon Multi-Camera Control App (MCC)
Manage and monitor multiple cameras wirelessly with flexible multi-view displays. Intuitively adjust settings and parameters on the fly, streamlining camera management for improved workflow efficiency.
Camera Search Tool
Streamline initial setup by configuring IP addresses and administrator accounts for multiple cameras simultaneously through your remote control.
Settings Page
Configure camera settings intuitively through any web browser. Adjust image quality, exposure, and white balance remotely while monitoring live video—accessible via IP or wireless LAN from tablets.
Webcam Driver
Transform your PTZ camera into a high-quality webcam by connecting via IP with the Webcam Driver. Register up to five cameras and switch between them seamlessly for versatile video conferencing and streaming applications.
Auto Tracking Application
Let the camera do the work with intelligent Auto Tracking that follows subjects automatically. The CR-N700 includes the free Auto Tracking (Lite), delivering smooth, precise tracking with essential configurations. Advanced customisation is available through a seamless upgrade to the full version* for complete control over your automated tracking workflows.
| Main Difference | Auto Tracking Application (Lite) | Auto Tracking Application* |
| Tracking Subject | Auto-select only | Auto-select & Manual Selection |
| Tracking Sensitivity | Fixed | 10 Levels |
| Tracking Subject Display Size | 2 Levels | 21 Levels |
| Tracking Target Display Position | Fixed at Centre | Adjustable |
| Priority Display Area | Not Available | Available |
| Fixed Angle of View | Not Available | Available |
| Save Tracking Settings | 1 Setting | Up to 5 Settings |
| Auto Framing (Multi-person Framing, Face Direction Framing, Sit / Stand Detection) | Not Available | Available |
| Registered Face Tracking | Not Available | Available |
*paid service
Auto Loop Application
Automate complex camera movements with programmable PTZ sequences that run continuously without operator intervention. Create up to five custom movement routes with an intuitive interface, then let the camera loop through them automatically—delivering consistent, professional shots while freeing your team to focus on other tasks.
*requires paid license
What's in the Box
The CR-N700 comes with the following:
- Camera
- Mounting bracket & screw
- Safety wire & screw
- Camera-to-mount safety wire & Screw
- IR remote controller & 2× AAA batteries
- Printed materials (installation guide & warranty card)
Compatible Product
Related Products
Related Reads
Specifications
Camera
| Indoor | |
| Type 1.0 (1.0 inch) single-plate CMOS sensor Total pixels: Approx. 13.40 megapixels Effective pixels: Approx. 8.29 megapixels (3840 × 2160) |
|
| f=8.3 – 124.5 mm, F/2.8 – 4.5, 9-bladed iris diaphragm 35 mm equivalent focal length: Approx. 25.5 (W) – 382.5 mm (T) |
|
| Optical: 15× Digital: 20× Advanced (FHD): 30× |
|
| 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range | |
| Horizontal: 73.0° (W) – 5.7° (T) Vertical: 45.2° (W) – 3.2° (T) |
|
| 1/3 – 1/2000 sec. (specific values depend on the frame frequency) |
|
| Manual/Automatic aperture | |
| -6.0 dB – 21.0 dB | |
| Built-in (Off, 1/4, 1/16, 1/64), motor operated | |
| AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), colour temperature setting (2,000 K – 15,000 K), Manual *Colour temperatures are given for reference purposes only. Colour temperature and colour compensation (CC) adjustment available for all settings except custom white balance and AWB. |
|
| Focus mode: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection AF type: Dual Pixel CMOS AF, Contrast AF |
|
| Canon Log 3, HDR(PQ), HDR(HLG), BT.709 Wide DR, BT.709 Normal, BT.709 Standard | |
| Optical-shift | |
| 59.94 Hz: Approx. 3 lux (shutter speed: 1/60, 59.94P) 50.00 Hz: Approx. 2.5 lux (shutter speed: 1/50, 50.00P) – Gain set to 21 dB, [High Sensitivity Mode] set to [On] |
|
| Pan Range: Horizontal ±170° Pan Speed: 0.1° – 100°/sec. Tilt Range: Vertical -30° – +90° Tilt Speed: 0.1° – 100°/sec. |
|
| Yes |
Server
| SDXC memory cards | |
| XF-AVC (3840 × 2160, 1920 × 1080) Video: MPEG-4 AVC/H.264, YCC4:2:2 10 bit, Intra-Frame/Long GOP, MXF Audio: Linear PCM (24 bit/48 kHz/4 ch) |
|
| MP4 HEVC (3840 × 2160, 1920 × 1080) Video: H.265/HEVC, YCC4:2:2 10 bit/YCC4:2:0 10 bit, Long GOP, MP4 Audio: MPEG-2 AAC LC (16 bit, 48 kHz, 2 ch)/Linear PCM (16 bit/48 kHz/4 ch) MP4 H.264 (3840 × 2160, 1920 × 1080) Video: MPEG-4 AVC/H.264, YCC4:2:0 8 bit, Long GOP, MP4 Audio: MPEG-2 AAC LC (16 bit, 48 kHz, 2 ch)/Linear PCM (16 bit/48 kHz/4 ch) |
Video Output Format
| 12G-SDI 3840 × 2160: 59.94P, 50.00P, 25.00P, 29.97P, 23.98P 1920 × 1080: 59.94P, 59.94i/29.97PsF, 50.00P, 50.00i/25.00PsF, 25.00P, 29.97P, 23.98P 1280 × 720: 59.94P, 50.00P 720 × 480*1: 59.94i 720 × 576*2: 50.00i *1 Frame Frequency: 59.94 Hz *2 Frame Frequency: 50.00 Hz 3G-SDI 1920 × 1080: 59.94P/59.94i, 50.00P/50.00i, 25.00P, 29.97P, 23.98P 1280 × 720: 59.94P, 50.00P - Colour sampling: 4:2:2, 10 bit - Same video format required for HDMI and 3G-SDI (cannot select different formats for 3G-SDI and HDMI) - When 3840 × 2160 or 720 × 480 (720 × 576) is selected, video will not be outputted to 3G-SDI |
|
| 3840 × 2160: 59.94P, 50.00P, 25.00P, 29.97P, 23.98P 1920 × 1080: 59.94P/59.94i, 50.00P/50.00i, 25.00P, 29.97P, 23.98P 1280 × 720: 59.94P, 50.00P 720 × 480*1: 59.94P 720 × 576*2: 50.00P *1 Frame Frequency: 59.94 Hz *2 Frame Frequency: 50.00 Hz - Colour sampling: 4:2:2, 10 bit - Same video format required for HDMI and 3G-SDI (cannot select different formats for 3G-SDI and HDMI) - When 3840 × 2160 or 720 × 480 (720 × 576) is selected, video will not be outputted to 3G-SDI |
|
| Frame Frequency: 59.94 Hz 3840 × 2160: 59.94 fps*, 29.97 fps, 14.99 fps, 5.00 fps 1920 × 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps 1280 × 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps 640 × 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps Frame Frequency 29.97 Hz 3840 × 2160: 29.97 fps, 14.99 fps, 5.00 fps 1920 × 1080: 29.97 fps, 14.99 fps, 5.00 fps 1280 × 720: 29.97 fps, 14.99 fps, 5.00 fps 640 × 360: 29.97 fps, 14.99 fps, 5.00 fps Frame Frequency: 50.00 Hz 3840 × 2160: 50.00 fps*, 25.00 fps, 12.50 fps, 5.00 fps 1920 × 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps 1280 × 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps 640 × 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps Frame Frequency: 25.00 Hz 3840 × 2160: 25.00 fps, 12.50 fps, 5.00 fps 1920 × 1080: 25.00 fps, 12.50 fps, 5.00 fps 1280 × 720: 25.00 fps, 12.50 fps, 5.00 fps 640 × 360: 25.00 fps, 12.50 fps, 5.00 fps Frame Frequency: 23.98 Hz 3840 × 2160: 23.98 fps, 11.99 fps, 5.99 fps 1920 × 1080: 23.98 fps, 11.99 fps, 5.99 fps 1280 × 720: 23.98 fps, 11.99 fps, 5.99 fps 640 × 360: 23.98 fps, 11.99 fps, 5.99 fps * H.265 only – Colour sampling: 4:2:0, 8 bit – Depending on the selected frame frequency, JPEG is fixed to one pattern (fixed format, cannot be selected) Resolution: 1280 × 720 59.94/29.97 Hz: 14.99 fps 50.00/25.00 Hz: 12.50 fps 23.98 Hz: 11.99 fps |
|
| - | |
| Protocol: XC Protocol, RTSP/RTP, NDI® HX2, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD | |
| Number of presets: Max. 100 (including home position) |
Interface
| LAN, Wi-Fi, Serial, IR | |
| LAN × 1, RJ45, 1000Base-T | |
| 12G/3G-SDI OUT Terminal BNC jack (output only) × 1, 0.8 Vp-p/75 Ω, unbalanced Video SD (SMPTE ST 259) HD (SMPTE 292) 3G (SMPTE 424, 425) 6G (SMPTE ST 2081) 12G (SMPTE ST 2082) Audio SD (SMPTE ST 272) Other than SD (SMPTE ST 299) Embedded audio, Time code (VITC/LTC) Assistance displays can be output (onscreen displays, peaking) |
|
| BNC jack (input and output), input: 0.5 - 18 Vp-p/100 kΩ Output: 1.3 Vp-p/50 Ω or less |
|
| BNC jack × 1, 1.0 Vp-p/75 Ω, input only | |
| HDMI connector × 1, output only | |
| RJ45 connector × 1 | |
| ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume centre, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume centre, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ) |
|
| INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume centre, full scale -18 dB)/600 Ω/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume centre, full scale -18 dB)/1 kΩ or more Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ) |
|
| - | |
| - |
Others
| Temperature: 0°C – +40°C (+32°F – +104°F) Humidity: 10% – 90% (without condensation) |
|
| PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used Ext. power source: 12 V DC (4-pin XLR input) |
|
| PoE++ Input: Approx. 37.4 W* max. (body only) DC Input: Approx. 36.7 W max. (body only) *Class 5 (40.0 W required) for power supply devices |
|
| Approx. 200 × 269 × 208 mm (7.87 × 10.59 × 8.19 in.) (excluding protrusions) | |
| Approx. 4.4 kg (9.7 lb.) (body only) | |
| Hardware: RC-IP1000, RC-IP300, RC-IP100 Software: Remote Camera Control Application |
|
| - | |
| - | |
| - |
What's in the Box
The CR-N700 comes with the following:
- Camera
- Mounting bracket & screw
- Safety wire & screw
- Camera-to-mount safety wire & Screw
- IR remote controller & 2× AAA batteries
- Printed materials (installation guide & warranty card)
Specifications and availability subject to change without notice. Weight and dimensions are approximate.
