CN-E85mm T1.3 FP X
CN-E85mm T1.3 FP X

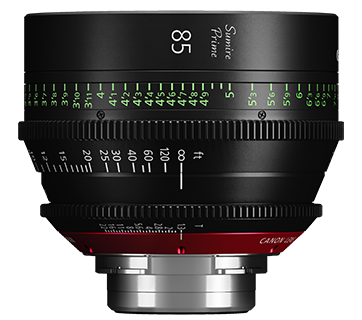

A popular prime lens for portraiture, the Sumire CN-E85mm T1.3 FP X is constructed with a unique lens characteristic that imparts a dreamlike softness to the bokeh captured.
Optimal for capturing close-ups of subjects to illustrate a range of emotions throughout the filming process, particularly in low-light conditions, with minimal facial distortion.
主要功能
Canon's unique line of cinema prime lenses – appropriately named "SUMIRE Prime".
In Japanese, it is pronounced "Soo-mee-ray". It is connected to the gentleness and beauty of flowers. Bright T-stops and Canon's well-known warm imagery are combined with a special optical design that adds a subtle look as the lens aperture gets closer to its maximum setting, slightly altering the close-up textural renderings of the human face. Additionally, it creates a smooth transition to the scene's fall-off sections, which produces a beautiful bokeh. A memorable scene gains emotional expressiveness from this combination.
Beautiful
Aesthetics
Artistically Pleasing Image Rendering and Warmer Colours
The original lens composition with a large diameter aspheric lens and anomalous dispersion glass offers more solid and artistically pleasing image rendering. This brings out the impressive image quality of 4K cinema images in all their glory. The warm colour tones have been consistent throughout the series to artistically capture people’s facial expressions and better depict the subject’s texture.
Explore
Darkness
Bright T No
The fast T-stop makes these lenses ideal for shooting in low-light scenarios or almost no light, which is made possible with the large-diameter lens that the Sumie Prime lenses are known for.
Gentle
Elegance
Soft and Natural Bokeh Effect
The bright T-number of the PRIME lens and multi-blade iris diaphragm produces natural blur effects closer to a circle, from maximum to minimum aperture. You get a more three-dimensional bokeh even with super wide-angle lenses with a more profound depth of field, broadening the range of visual expression.
Artistic Rendering
With the help of the phenomenon that an odd number of iris blades causes the number of light rays to double, all Canon CN-E series lenses employ 11 iris blades to provide softly diffused light for imaging.
Diffracted light in the opposite direction does not overlap when there is an odd number of blades, producing diffused, visually pleasing light rays.
Focal Length Comparison
| Focal Length | 14mm | 20mm | 24mm | 35mm | 50mm | 85mm | 135mm |
| T No. | 3.1 | 1.5 | 1.5 | 1.5 | 1.3 | 1.3 | 2.2 |
| Number of Iris Blades | 11 | ||||||
| Features | Beautifully rendered pictures that make the subject look more impressive | ||||||
300° Focus Rotation
In addition to providing the precise amount of resistance required for focusing.
The lens features a focus rotation angle of 300° to meet the requirements of focusing professionals.
Consistent Operability
Across the PRIME lens series, the gear position, front diameter, total length*1, filter diameter*2 and rotation angle have been standardised. It is possible to utilise matte boxes and accessories even after changing lenses.
*1 Except CN-E14mm T3.1 FP X & CN-E135mm T2.2 FP X
*2 Except CN-E14mm T3.1 FP X
Distance Indicators
Cinema Lens has a crucial feature: the focus ring has indicator numbers on both the left and right sides of the lens, allowing it to check the distance indicator from either side.
Phosphorescent Indicators
To improve visibility in low-light conditions, the front barrel has indicator markings with phosphorescent paint.
Switchable Units Display
You've the freedom to show distance in either feet or meters by swapping the exterior parts of the lens.
Specifications
| CN-E14mm T3.1 FP X | CN-E20mm T1.5 FP X | CN-E24mm T1.5 FP X | CN-E35mm T1.5 FP X | CN-E50mm T1.3 FP X | CN-E85mm T1.3 FP X | CN-E135mm T2.2 FP X | ||
| Mount | PL Mount | |||||||
| Focal Length | 14mm | 20mm | 24mm | 35mm | 50mm | 85mm | 135mm | |
| Maximum Diameter Ratio (T-number) | T 3.1 | T 1.5 | T 1.5 | T 1.5 | T 1.3 | T 1.3 | T 2.2 | |
| Number of Iris Blades | 11 | |||||||
| Angle of View | Aspect Ratio 1.5:1 Screen Dimensions 36.0 x 24.0mm |
104.3° x 81.2° | 84.0° x 61.9° | 73.7° x 53.1° | 54.4° x 37.8° | 39.6° x 27.0° | 23.9° x 16.1° | 15.2° x 10.2° |
| Aspect Ratio 1.78:1 Screen Dimensions 24.6 x 13.8mm |
82.6° x 52.5° | 63.2° x 38.1° | 54.3° x 32.1° | 38.7° x 22.3° | 27.6° x 15.7° | 16.5° x 9.3° | 10.4° x 5.9° | |
| Minimum Shooting Distance | 0.20m / 8" | 0.3m / 12” | 0.3m / 12” | 0.3m / 12” | 0.45m / 18" | 0.95m / 3'2" | 1.0m / 3'3" | |
| Shooting Range at Closest Approach | Aspect Ratio 1.5:1 Screen Dimensions 36.0 x 24.0mm |
25.2 x 16.8 cm | 33.8 x 22.5 cm | 28.8 x 19.2 cm | 20.2 x 13.5 cm | 25.0 x 16.7 cm | 34.4 x 22.9 cm | 21.1 x 14.1 cm |
| Aspect Ratio 1.78:1 Screen Dimensions 24.6 x 13.8mm |
17.2 x 9.7 cm | 23.1 x 13.0 cm | 19.7 x 11.0 cm | 13.8 x7.7 cm | 17.1 x 9.6 cm | 23.5 x 13.2 cm | 14.4 x 8.1 cm | |
| Front Diameter | Φ114 mm | |||||||
| Outer Dimension ( W x H x D) | approx. 118.4 x 118.4 x 86.0 mm |
approx. 118.4 x 118.4 x 93.5 mm |
approx. 118.4 x 118.4 x 93.5 mm |
approx. 118.4 x 118.4 x 93.5 mm |
approx. 118.4 x 118.4 x 93.5 mm |
approx. 118.4 x 118.4 x 93.5 mm |
approx. 118.4 x 118.4 x 107.6 mm |
|
| Weight | approx. 1.2 kg | approx. 1.2 kg | approx. 1.2 kg | approx. 1.1 kg | approx. 1.1 kg | approx. 1.3 kg | approx. 1.4 kg | |
Pitch Circle Diameter |
Module | 0.8 | ||||||
| Focus | 116.8 mm | |||||||
| Zoom | - | |||||||
| Iris | 100.8mm | |||||||
